Machining
Here at ACF, our arsenal of CNC machinery enables us to achieve tight tolerance precision machining in a variety of materials. Our machine shop houses various CNC lathes, vertical boring mills, and a horizontal boring mills.
Our boring mills can handle material up to 30 feet in length and 16 feet in height. Processes performed on our mills include drilling, tapping, profiling, and precision milling. Our lathes can handle material up to 38 inches in diameter and 14 feet in length. Processes performed on our lathes include turning, facing, chamfering, and threading.
We are always on the look out for additional equipment to add to our shop to expand our machining capabilities. Scroll below to see our current lineup of machines.
Our Lathes, Mills, and their Capacities
Geminis Lathe
-
31.5" Diameter x 196" Length Workpiece Capacity
-
11 Ton Load Capacity Between Centers
-
14 Ton Load Capacity with Steady Rest
Samsung SMEC Lathe
-
16" Diameter x 60" Length Workpiece Capacity
-
26.75" Swing Over Bed
Nishimori Lathe
-
72" Diameter x 200+" Length Workpiece Capacity
LTC 25CL Leadwell Lathe
-
12" Diameter x 36" Length Workpiece Capacity
Vision Wide VB-3016 CNC Mill
-
122" x 51" x 30" Workpiece Capacity
-
22,000 lb Table Load Capacity
Ding Koan DK2505 CNC Mill
-
208" x 98" x 60" Workpiece Capacity
-
24,000 lb Table Load Capacity

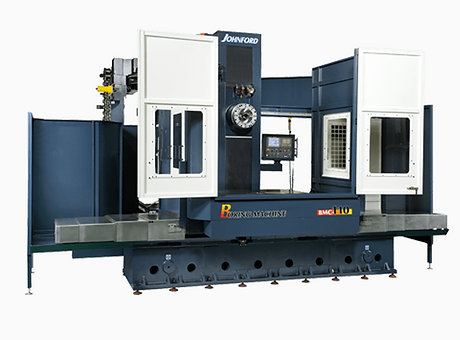

Johnford BMC110 CNC Horizontal Mill
-
78.7" x 70.8" x 63" Workpiece Capacity
-
15,400 lb Table Load Capacity
Hyundai Wia 135CL CNC Horizontal Mill
-
*** NEW ADDITION TO SHOP ***
-
157.5" x 98.4" x 78.7" Workpiece Capacity
-
33,000 lb Table Load Capacity
